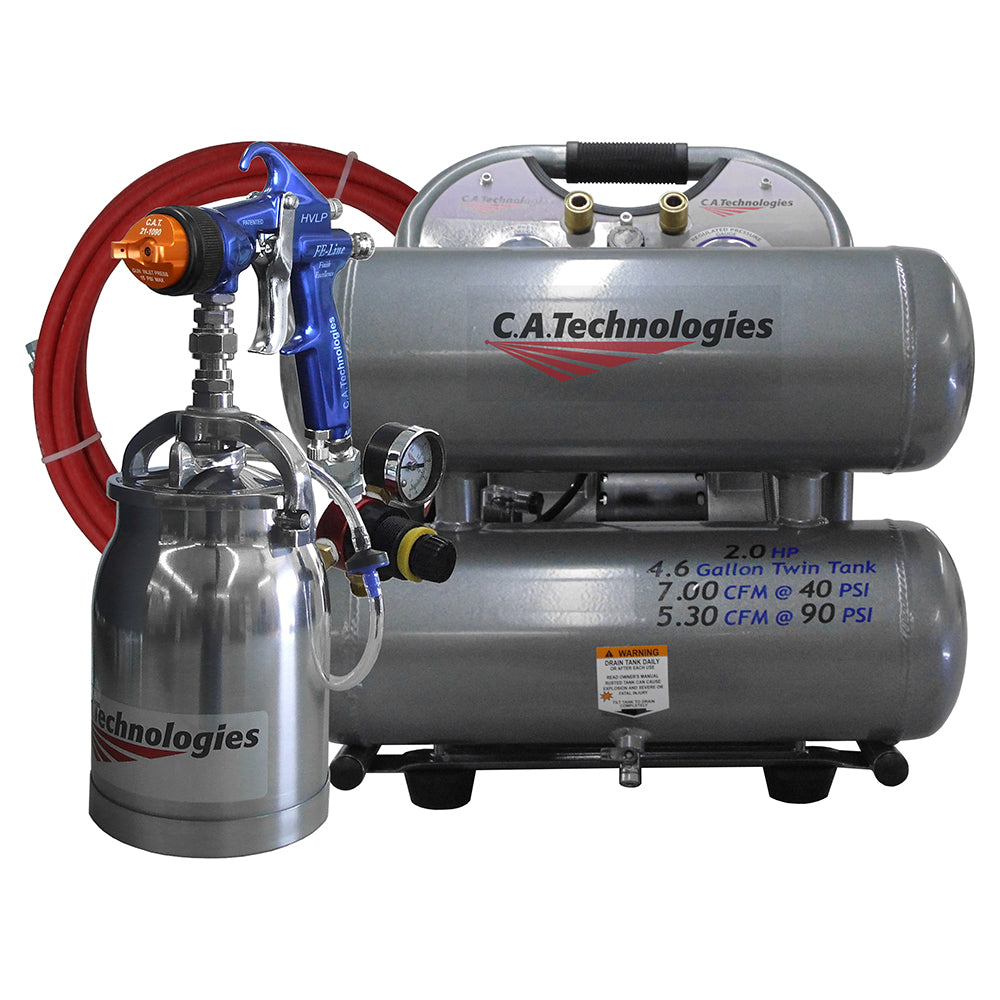

The C.A. Technologies GO portable compressor system is CAT’s new on the go unit. This system contains a 2 HP compressor with 4.6 gallon twin tanks for a continuous supply of air, perfect for your low cfm options out in the field. The compressor is engineered to reduce noise for a quieter work environment. This outfit is equipped with the FE-Line LCFM (Low CFM) HVLP pressure feed spray gun, one quart aluminum pressure cup and 25 foot air hose to offer a very versatile pressure feed portable spray system for any application!

This item ships separately and does not qualify for free freight.

Specifications:

• 2 HP compressor with 4.6 gallon twin tanks
• 7.0 CFM @ 40 PSI or 5.3 CFM @ 90 PSI air compressor output rating
• Air compressor is 120V and ETL listed
• Air compressor weight - 75 lbs.
• Air compressor has dual air regulators with quick disconnect
• Advanced air compressor motor design for quieter operation (70 db)
• Spray gun offers nozzle sets ranging from 0.5 mm – 1.7 mm
• Spray gun air inlet - 1/4” NPS (m) & fluid inlet – 3/8” NPS (m)
• Spray gun weight – 15 oz.
• Required atomizing air pressure may vary as required by air cap (15 psi - 33 psi)
• Required atomizing air volume is 6 – 13 cfm dependent on the air cap
• The air volume requirement (CFM) is dependent on the air cap (21-1090 Low CFM air cap requires 6 cfm @ 15 psi)
• 25 ft Air Hose (5/16” ID with ¼” NPS female fittings)
• Excellent HVLP spray system for portability on the GO

Additional Features & Benefits:

• The FE-LCFM spray gun offers stainless steel wet parts however it does not have the stainless steel sleeve inside the aluminum gun head which is most desirable with any water-base stain, coating, or adhesive.

The GO Portable Compressor System Outfit (GO-CP-FELCFM-303R2) Includes:

• 2 HP Compressor (70-103)
• C.A. Technologies FE-Line LCFM (Low CFM) Spray Gun CAT Pack (CP-FELCFM-303R2)
• 3 Nozzle Sets (0.8 mm, 1.3 mm & 1.7 mm)
• 2 Air Caps (21-1090 – 6 cfm @ 15 psi low cfm & 21-1094 - 13 cfm @ 33 psi)
• 1 Quart Aluminum Pressure Cup with Regulator (51-303-R2)
• Tools & Carrying Case
• 25 ft Air Hose - 5/16” ID with ¼” NPS Female Fittings (53-112-25)

Information:

C.A. Technologies 2.0 HP GO Portable Compressor System – Sales Sheet

FE-Line LCFM Spray Gun (FE-LCFM) – Part Sheet

Please note that the C.A. Technologies Portable GO Compressor Unit provides a continuous 7 CFM @ 40 psi which is not a common CFM rating in a 75 lb. portable compressor. This compressor is available separately or with popular LOW CFM guns set-ups. Contact us if you prefer a different package (set-up) which is not shown on our website. In addition, the repair kit for the FE-LCFM is part # 10-140.  For more detailed information on the spray gun such as parts, setup & maintenance, please review the part sheet.
